Ray™ Panel Series

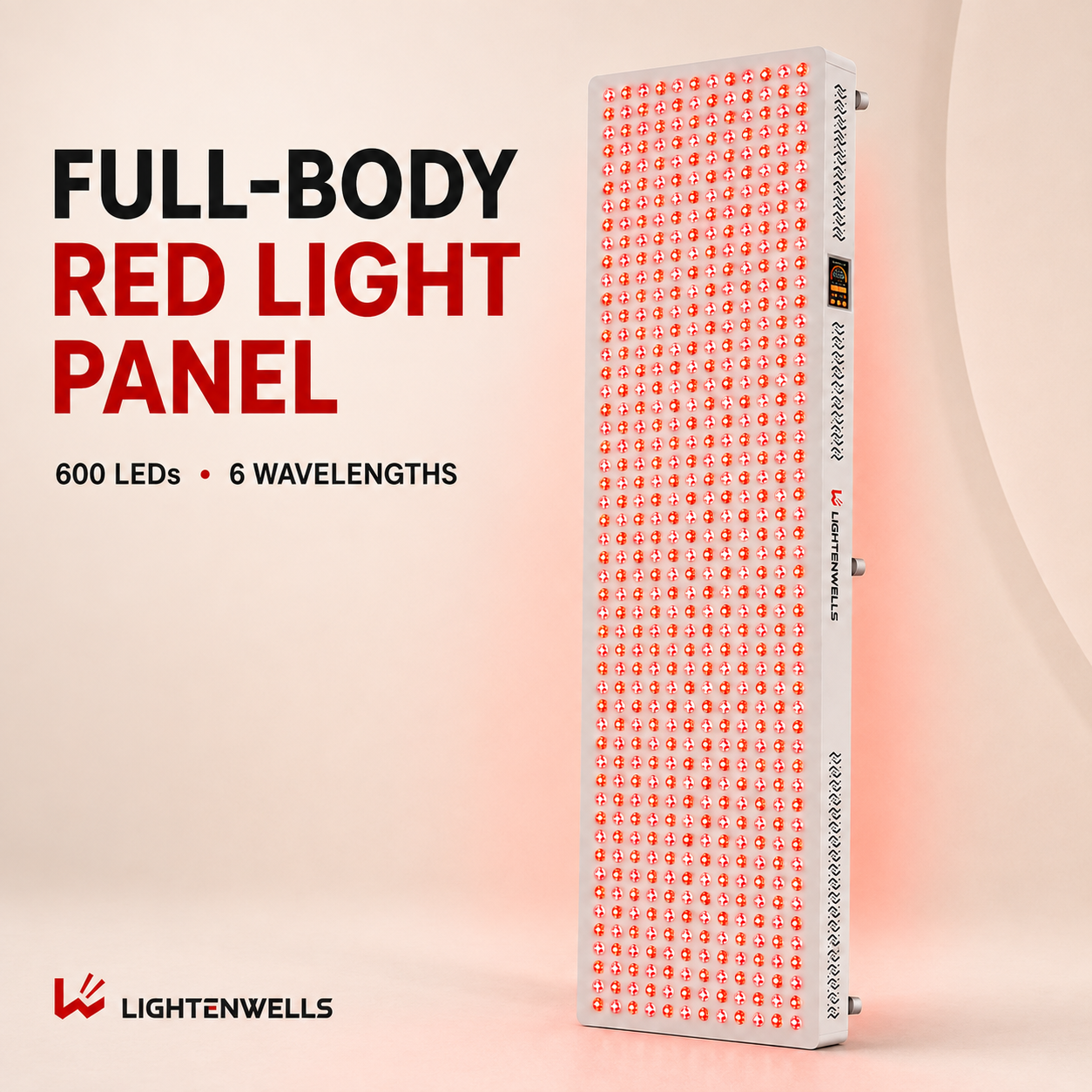

Ray™ Max T600 Red Light Wellness Panel
Full-body coverage, six selected wavelengths, and flexible touch-screen controls for regular indoor wellness routines.
600 High-output 5W LEDs
6 Selected wavelengths
59.5″ Large upright panel height
1 Year Limited warranty coverage
Built for Full-Body Wellness Routines
Ray™ Max T600 combines 600 high-output LEDs, six wavelength options, adjustable brightness, pulse settings, and an integrated touch-screen control panel in a large upright format for full-body and large-area routines.

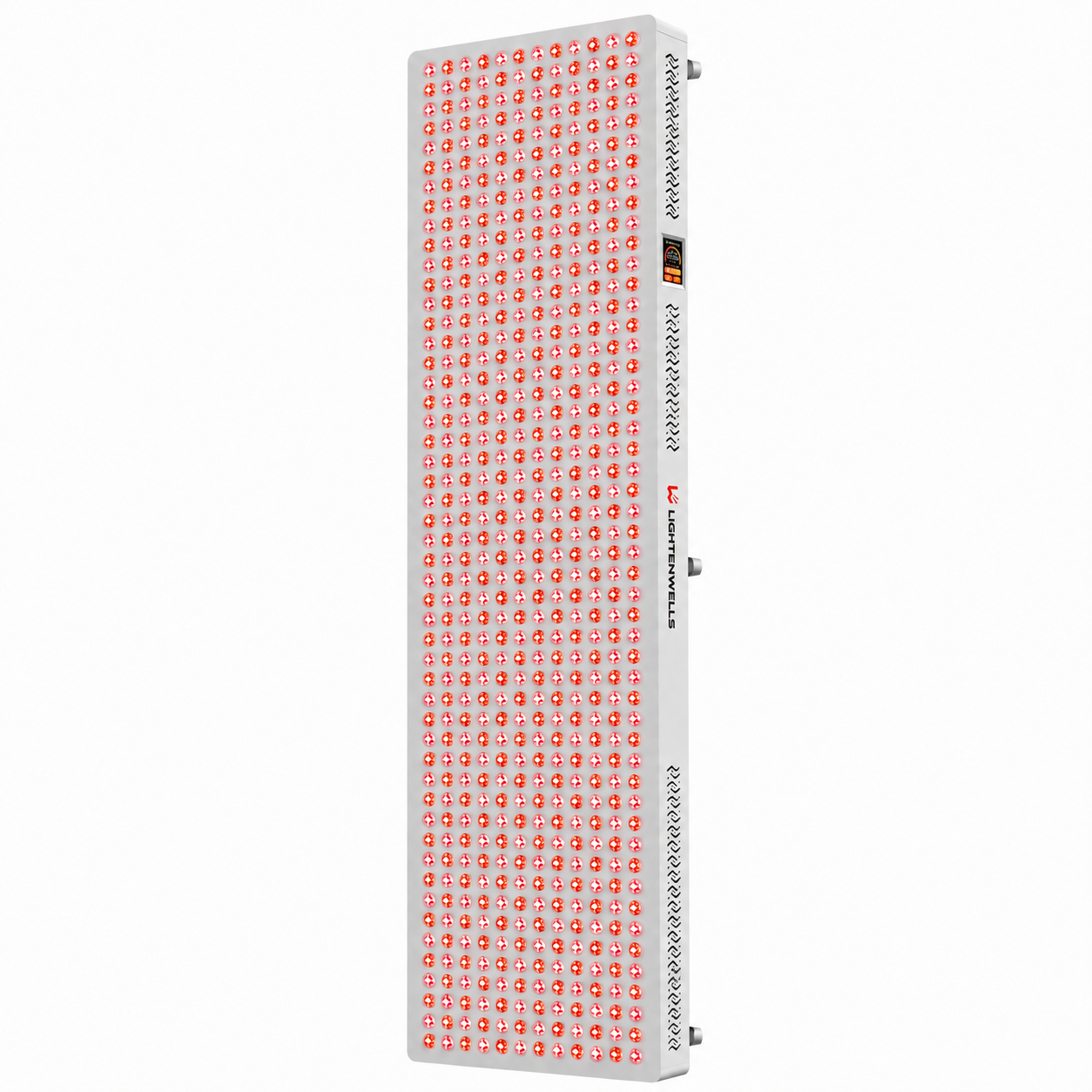

Large Illuminated Surface
The approximately 59.5 × 16.5-inch panel provides broad coverage and helps reduce the need to repeatedly reposition a smaller panel across multiple body areas.

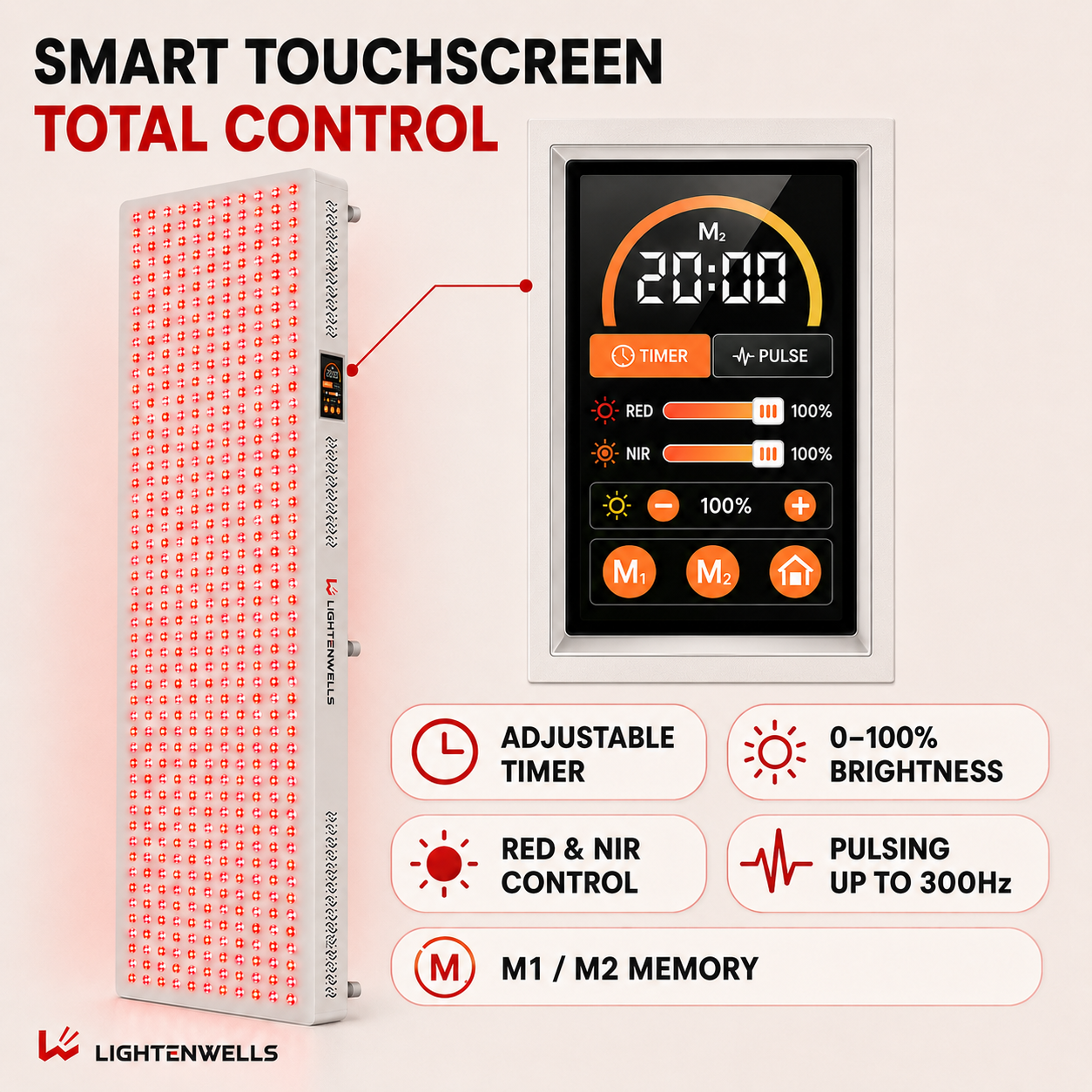

Integrated Touch-Screen Control
Adjust core operating settings directly through the built-in display, including session time, brightness, pulse settings, and light modes.

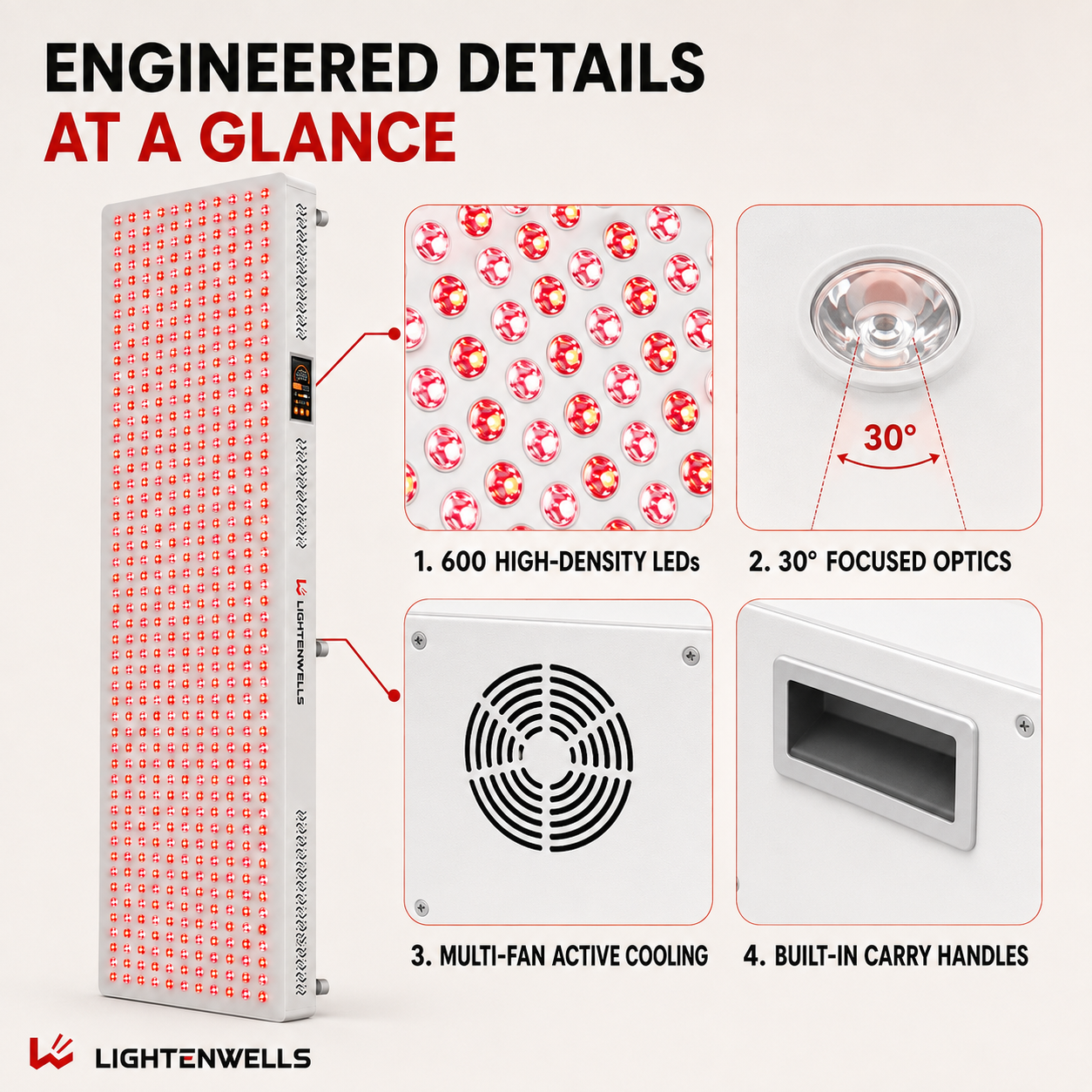

30-Degree Optical Lens
A 30-degree optical lens angle helps direct emitted light toward the selected coverage area while limiting unnecessary dispersion.
Heat-Managed Construction
Multiple rear cooling fans and extended side ventilation help support airflow and heat dissipation during operation.

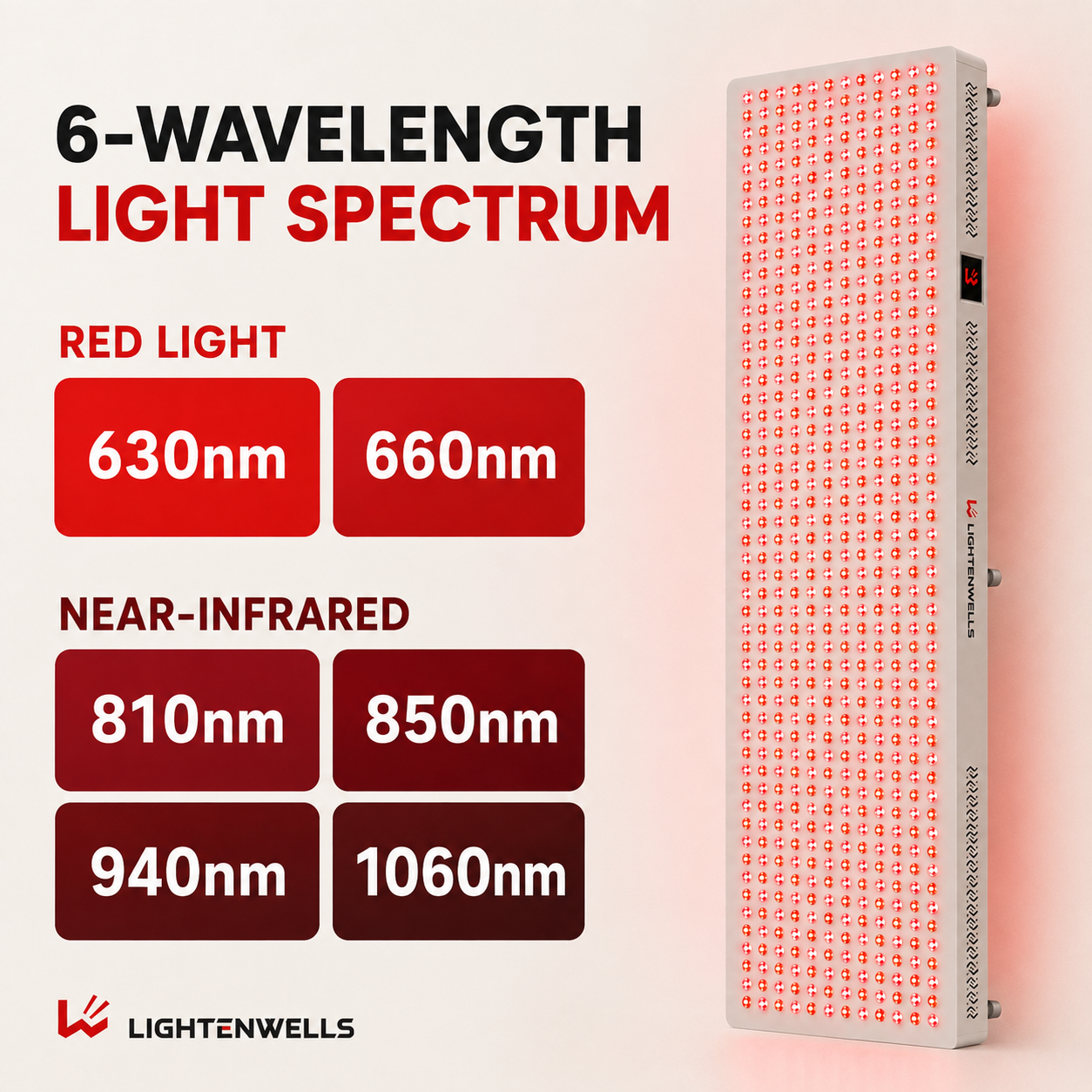

Six-Wavelength Light Technology
Choose red light, near-infrared light, or a combined mode according to the operating instructions supplied with your product.
630 nm + 660 nm Red-light wavelengths
810 nm + 850 nm + 940 nm + 1060 nm Near-infrared-light wavelengths
Output and Operating Features
- 600 × 5W LED configuration

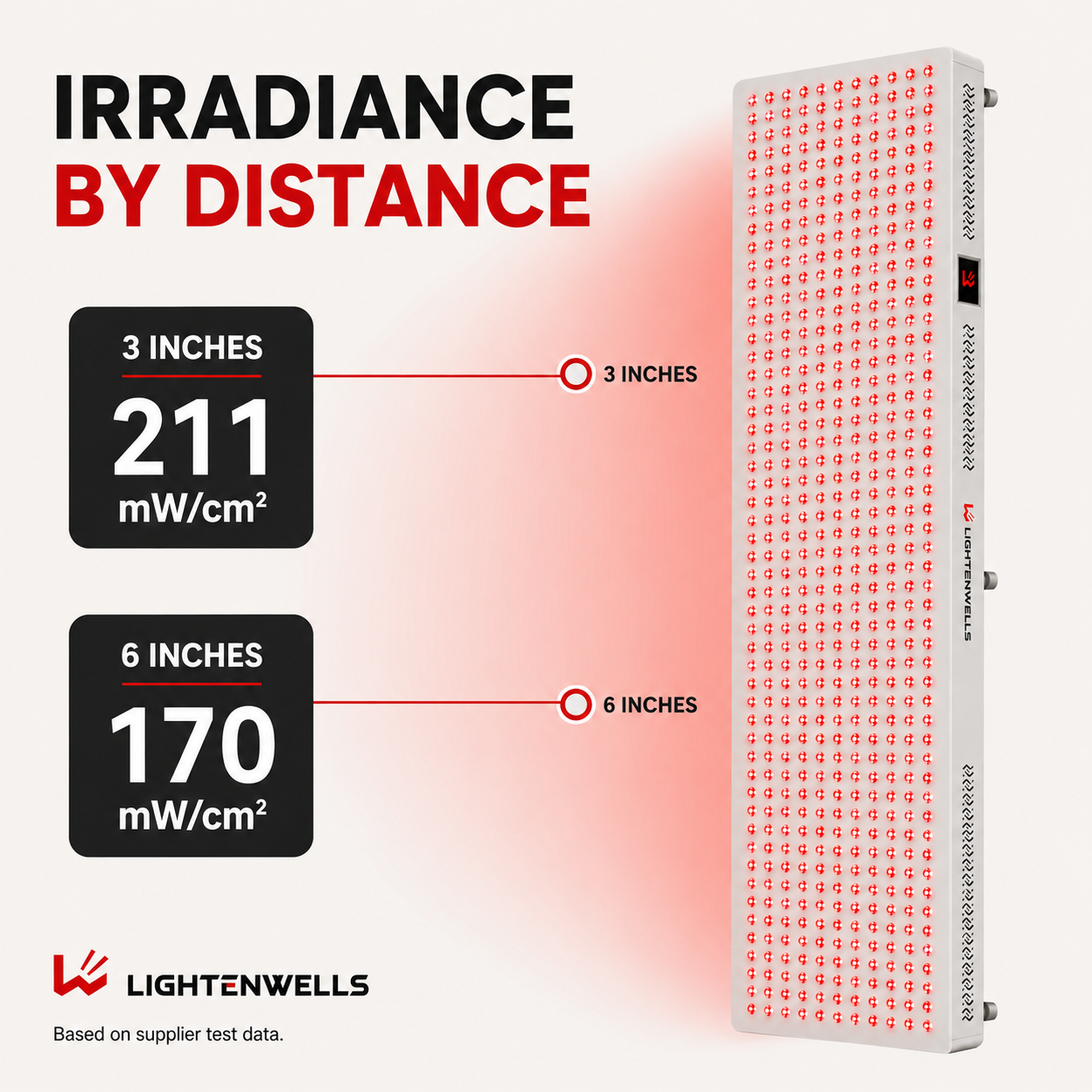

- Manufacturer-rated irradiance ≥211 mW/cm² at 3 inches, ±10%
- Manufacturer-rated irradiance ≥170 mW/cm² at 6 inches, ±10%
- Actual power consumption of 750W, ±10%
- Brightness control from 0% to 100%
- Pulse settings from 5 to 300 Hz
- Red, near-infrared, or combined light modes
- M1 and M2 memory settings
Manufacturer-rated output: Irradiance values are measured under specified test conditions. Actual measurements may vary with the testing instrument, measuring position, selected mode, power supply, distance, and operating environment.
Product Specifications
| Product Name |
Ray™ Max T600 Red Light Wellness Panel |
| Available Color |
White |
| Product Type |
Large-format full-body red and near-infrared light panel |
| Dimensions |
Approximately 59.5 × 16.5 × 2.8 inches |
| Metric Dimensions |
151.1 × 42 × 7 cm |
| Packaged Weight |
Approximately 25 kg / 55.1 lb |
| LED Configuration |
600 × 5W LEDs |
| Combined LED Chip Rating |
3,000W |
| Actual Power Consumption |
750W, ±10% |
| Input Voltage |
110–240V AC |
| Wavelengths |
630 nm, 660 nm, 810 nm, 850 nm, 940 nm, and 1060 nm |
| Irradiance at 3 Inches |
≥211 mW/cm², ±10% |
| Irradiance at 6 Inches |
≥170 mW/cm², ±10% |
| Lens Beam Angle |
30 degrees |
| Brightness Control |
Adjustable from 0% to 100% |
| Pulse Settings |
Adjustable from 5 to 300 Hz |
| Timer Function |
Supported |
| Touch-Screen Control |
Supported |
| Memory Settings |
M1 and M2 |
| Remote-Control Support |
Supported; compatible remote sold separately |
| Cooling System |
Multiple rear cooling fans with side ventilation |
| Rated LED Lifespan |
Approximately 50,000 hours |
| Recommended Use |
Full-body and large-area wellness routines |
| Warranty |
1 year |
What’s Included
- Ray™ Max T600 Red Light Wellness Panel
- Protective eyewear
- Power cable
- User manual
Optional accessories: A compatible remote control, mobile floor stand, and adjustable horizontal stand are sold separately and are not included with the standard panel package.
General wellness notice: This product is intended for general wellness use only and is not designed to diagnose, treat, cure, mitigate, or prevent any disease. Individual experiences may vary. Consult a qualified healthcare professional before use if you have a medical condition, take photosensitizing medication, are pregnant, or have concerns about light exposure. Always use protective eyewear as directed in the user manual and follow all operating, distance, placement, and safety instructions supplied with the product.
