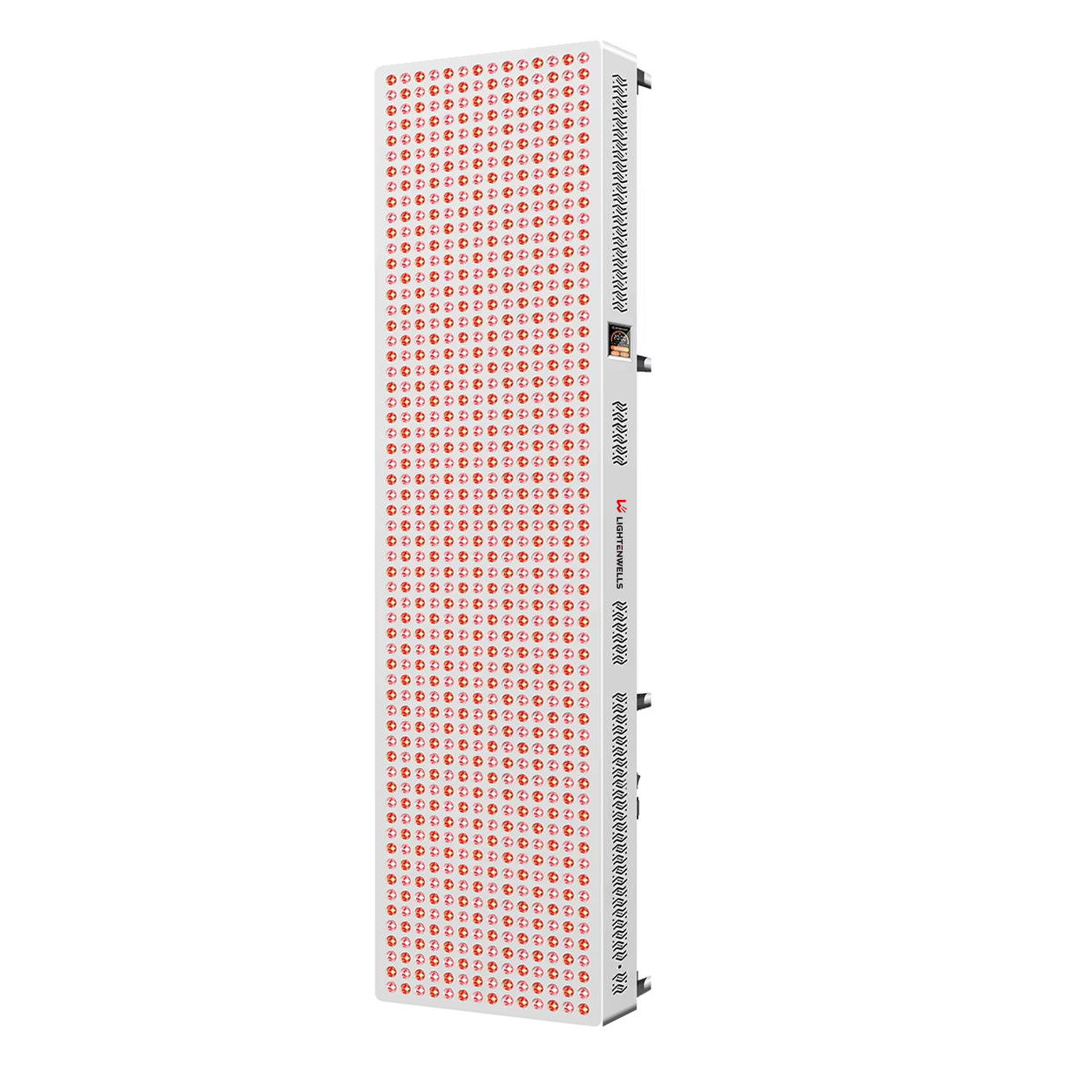

Ray™ Ultra T840 Red Light Wellness Panel
Large full-body coverage, six selected wavelengths, touch-screen controls, and configurable settings for regular indoor wellness routines.
840 LEDs High-output 5W LED configuration
6 Wavelengths Selected red and near-infrared light
70.9″ Large upright panel height
1 Year Limited warranty coverage
Built for Large-Area Wellness Routines
Ray™ Ultra T840 combines 840 LEDs, six selected wavelengths, adjustable brightness, pulse settings, touch-screen controls, eight preset modes, and M1/M2 memory settings in a large upright format.
Expansive Full-Body Coverage
The approximately 70.9 × 16.9-inch panel format helps reduce the need to repeatedly reposition a smaller panel when using it across multiple body areas.

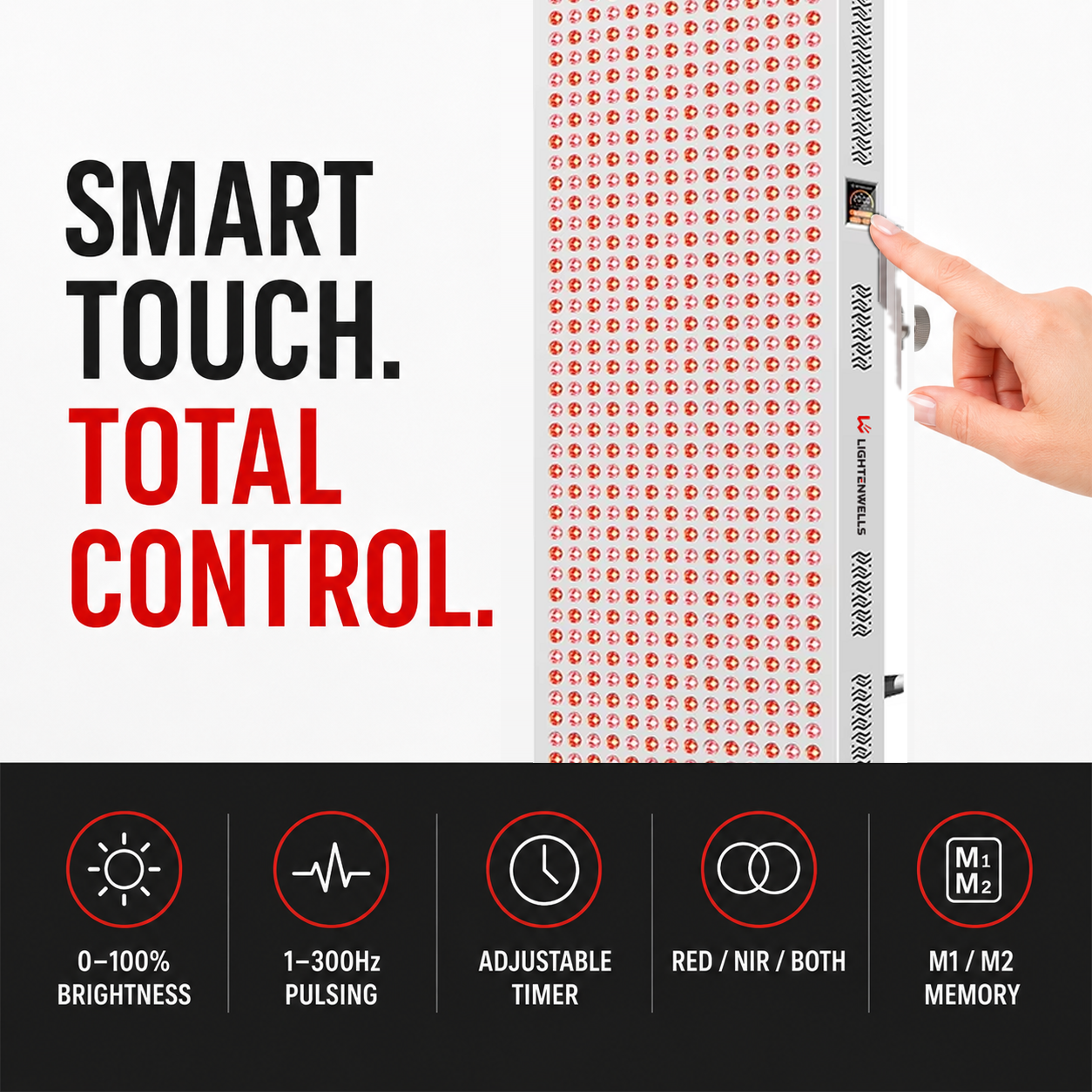

Integrated Touch-Screen Control
Adjust session time, brightness, pulse settings, and red or near-infrared light modes directly through the built-in touch screen.

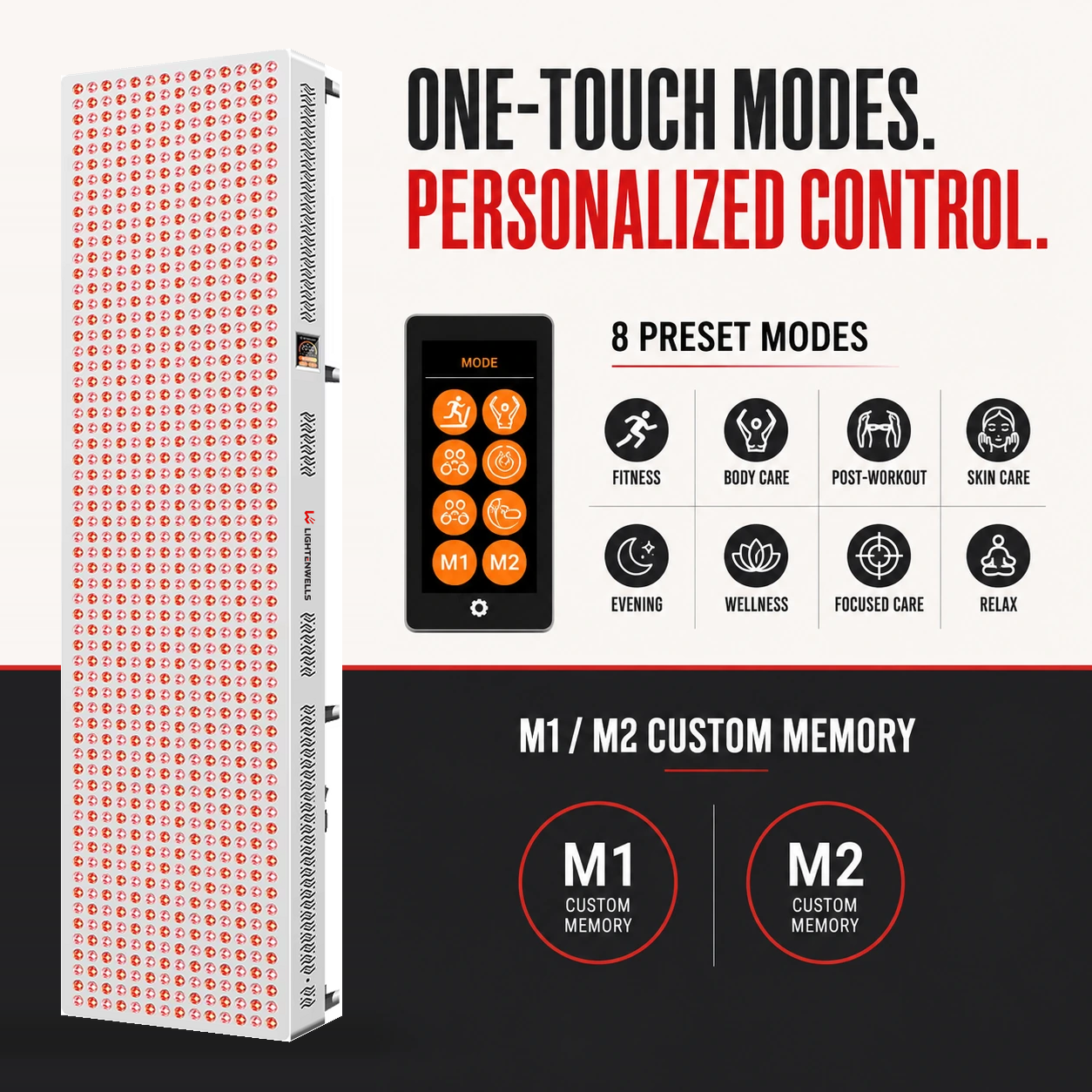

Preset and Memory Settings
Eight preset operating modes and M1/M2 customizable memory settings provide convenient access to preferred operating configurations.

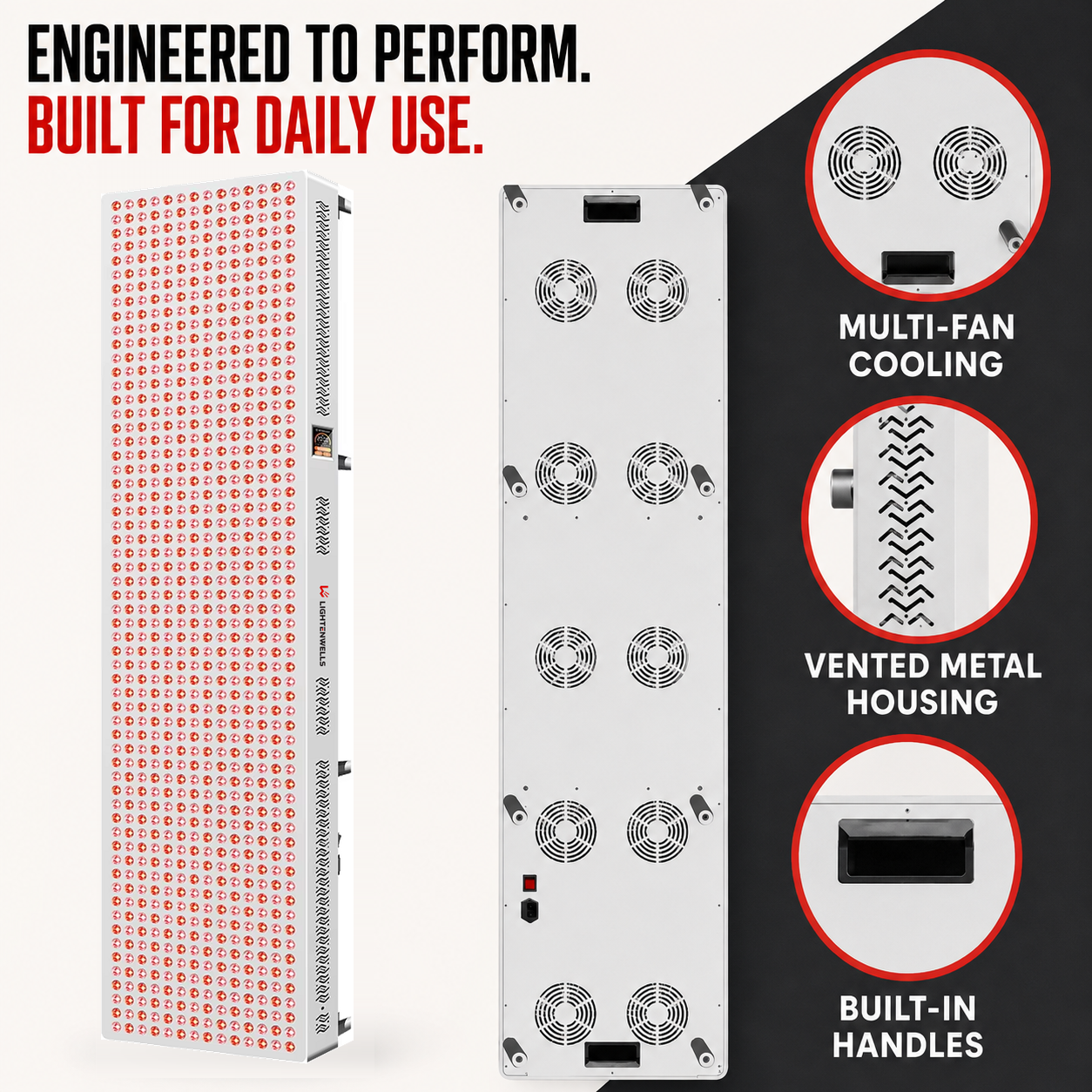

Heat-Managed Construction
A metal housing, multiple rear cooling fans, and extended side ventilation help support airflow during operation.

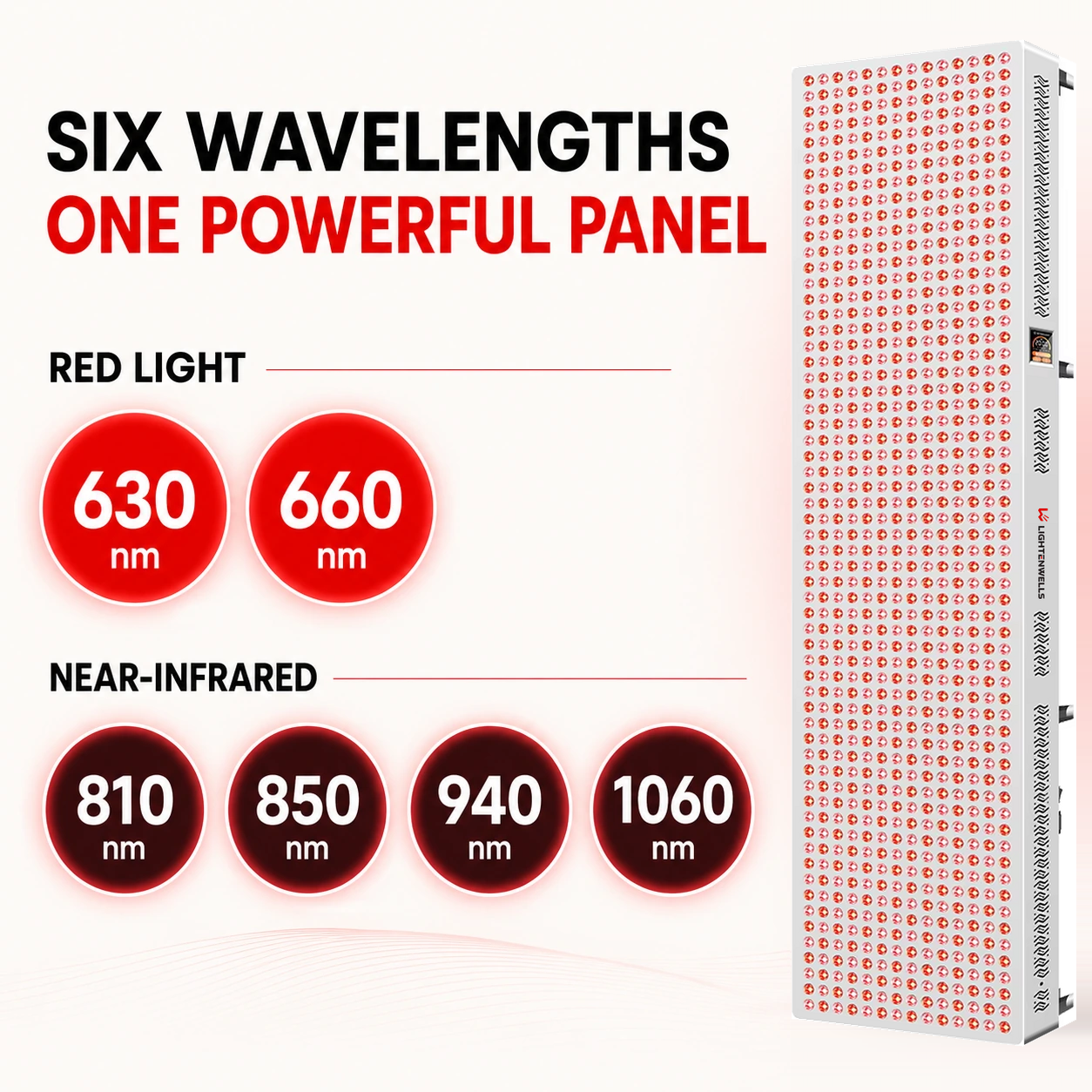

Six-Wavelength Light Technology
Choose red light, near-infrared light, or a combined mode according to the operating instructions supplied with your product.
630 nm + 660 nm Red-light wavelengths
810 nm + 850 nm + 940 nm + 1060 nm Near-infrared-light wavelengths
Output and Operating Features
- 840 × 5W LED configuration

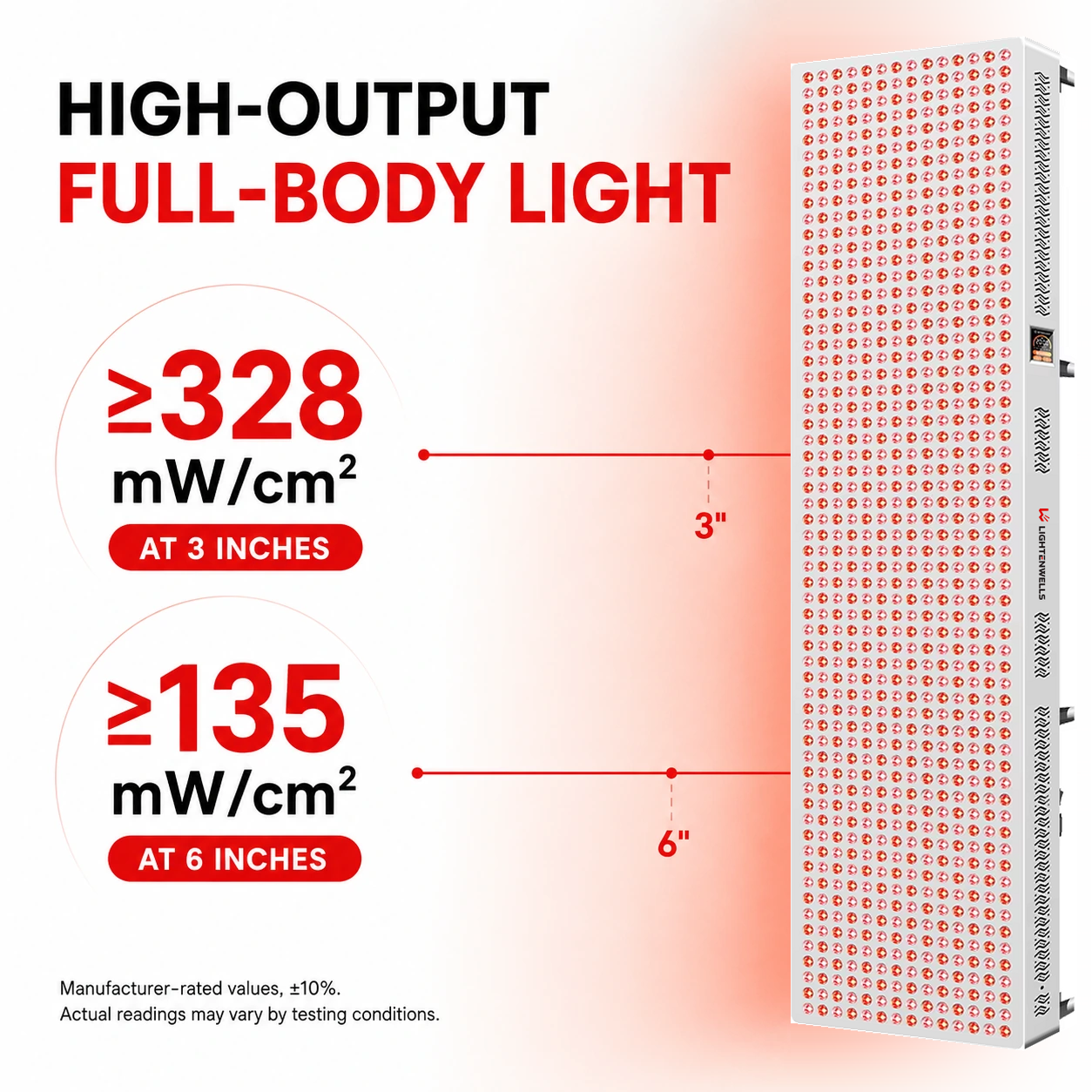

- Manufacturer-rated irradiance ≥328 mW/cm² at 3 inches, ±10%
- Manufacturer-rated irradiance ≥135 mW/cm² at 6 inches, ±10%
- Brightness control from 0% to 100%
- Pulse settings from 5 to 300 Hz
- Adjustable session timer
- Red-light, near-infrared, or combined modes
- Eight preset operating modes
- M1 and M2 customizable memory settings
Manufacturer-rated output: Irradiance values are measured under specified test conditions. Actual measurements may vary according to the testing instrument, measurement position, selected operating mode, power supply, and operating environment.
Product Specifications
| Product Name |
Ray™ Ultra T840 Red Light Wellness Panel |
| Available Color |
White |
| Product Type |
Large-format red and near-infrared light panel |
| Dimensions |
Approximately 70.9 × 16.9 × 2.8 inches |
| Metric Dimensions |
180 × 43 × 7 cm |
| Packaged Weight |
Approximately 36 kg / 79.4 lb |
| LED Configuration |
840 × 5W LEDs |
| Combined LED Chip Rating |
4,200W |
| Actual Power Consumption |
1,000W, ±10% |
| Input Voltage |
110–240V AC |
| Wavelengths |
630 nm, 660 nm, 810 nm, 850 nm, 940 nm, and 1060 nm |
| Irradiance at 3 Inches |
≥328 mW/cm², ±10% |
| Irradiance at 6 Inches |
≥135 mW/cm², ±10% |
| Lens Beam Angle |
30 degrees |
| Brightness Control |
Adjustable from 0% to 100% |
| Pulse Settings |
Adjustable from 5 to 300 Hz |
| Touch-Screen Control |
Supported |
| Preset Modes |
8 preset operating modes |
| Memory Settings |
M1 and M2 customizable memory settings |
| Remote-Control Support |
Supported; compatible remote control sold separately |
| Cooling System |
Multiple rear cooling fans with side ventilation |
| Rated LED Lifespan |
Approximately 50,000 hours |
| Warranty |
1 year |
What’s Included
- Ray™ Ultra T840 Red Light Wellness Panel
- Power cable
- User manual
Optional accessories: Protective eyewear, compatible remote control, mobile floor stand, and horizontal stand are not included with the standard package and are sold separately.
General wellness notice: This product is intended for general wellness use only and is not designed to diagnose, treat, cure, mitigate, or prevent any disease. Individual experiences may vary. Consult a qualified healthcare professional before use if you have a medical condition, take photosensitizing medication, are pregnant, or have concerns about light exposure. Use appropriate protective eyewear as directed in the user manual, and follow all operating, distance, placement, ventilation, and safety instructions supplied with the product.
