Ray™ Panel Series

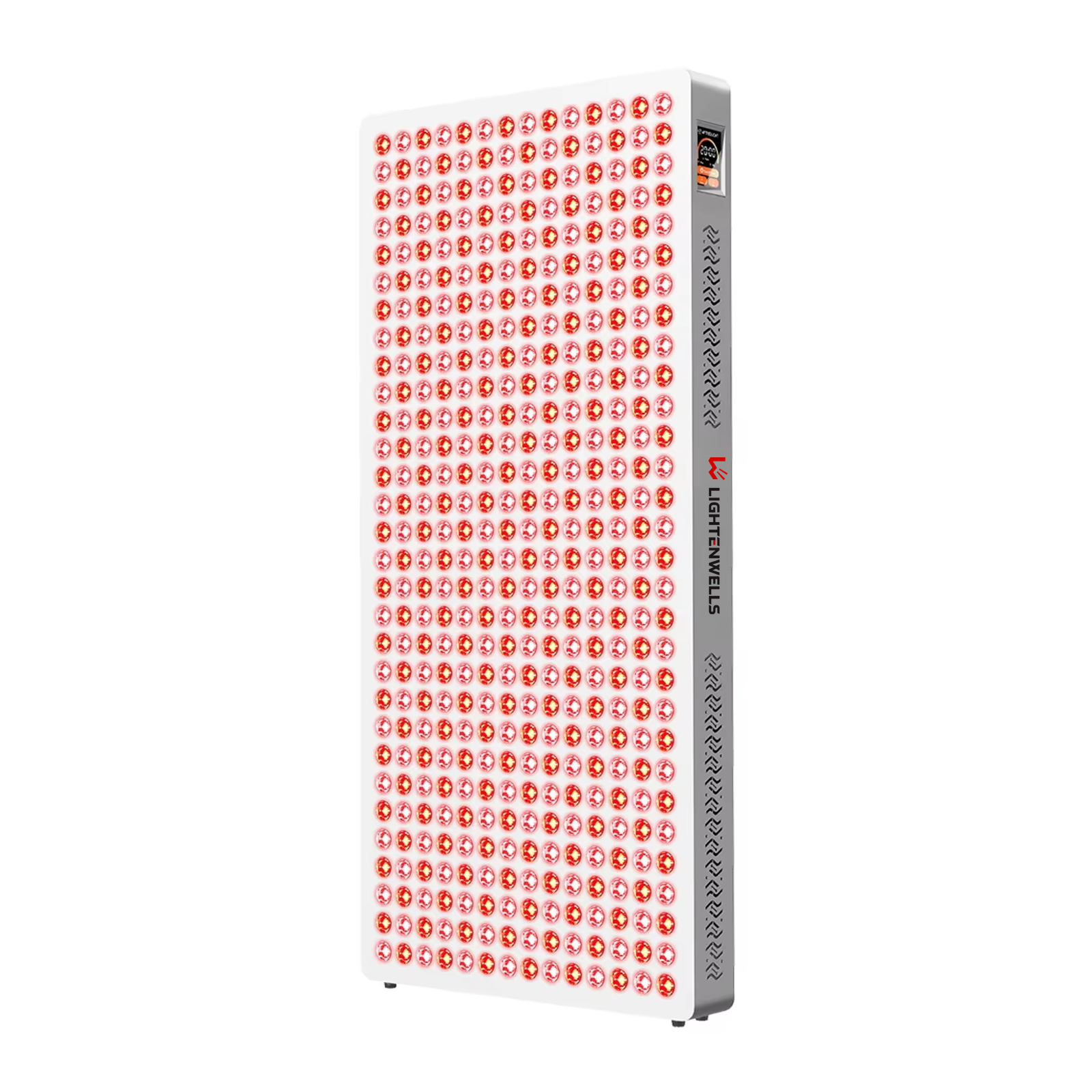

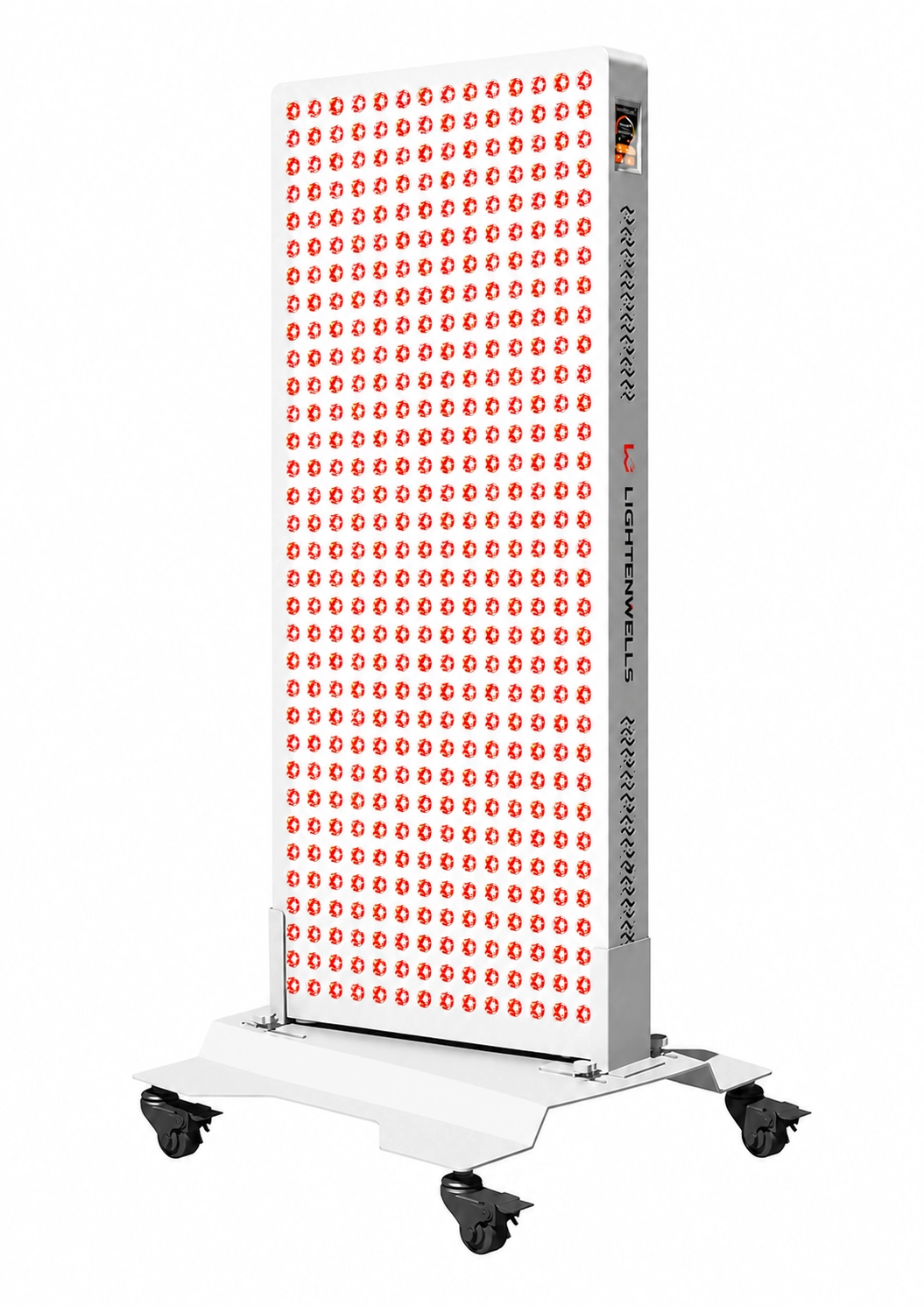

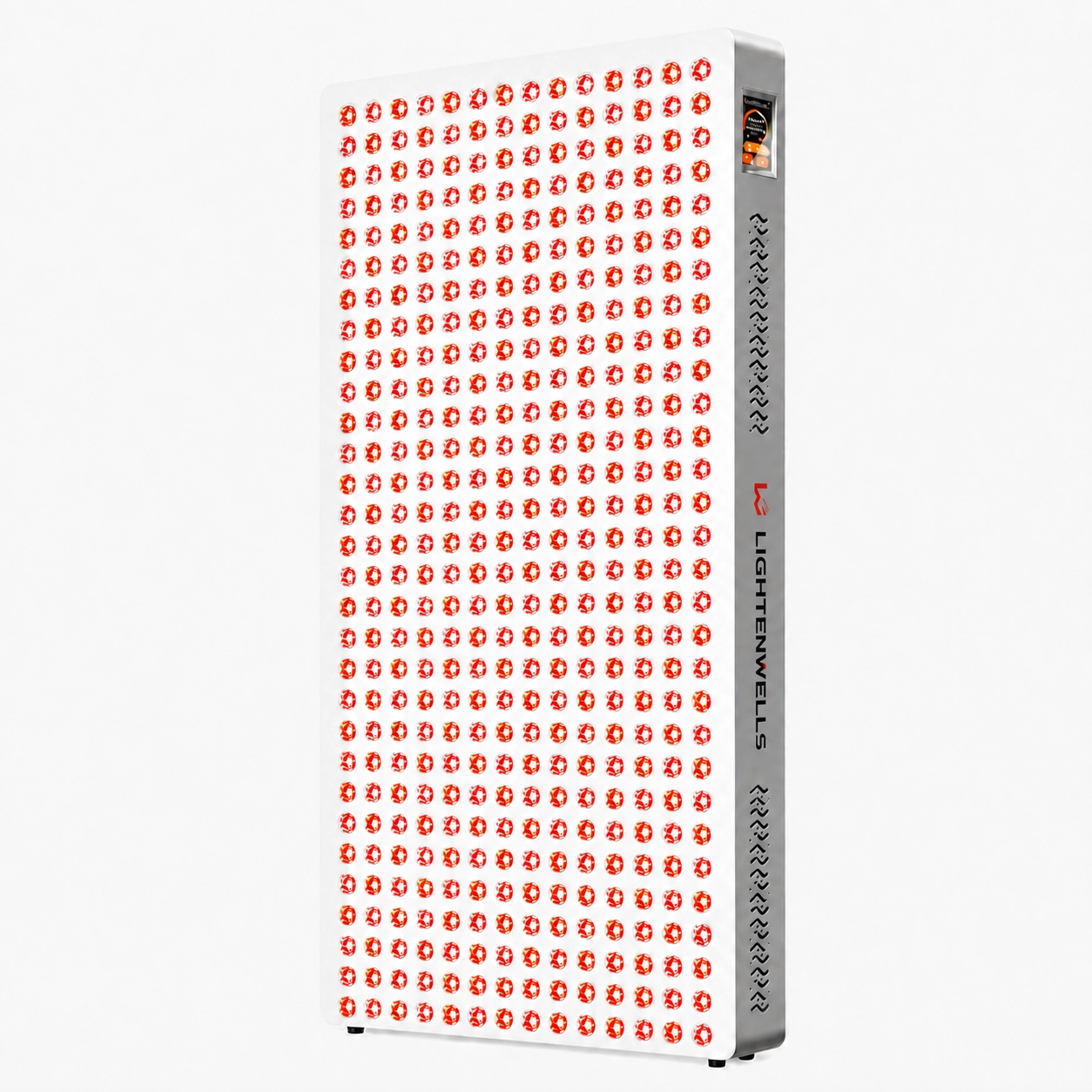

Ray™ Pro T420 Red Light Wellness Panel
Expanded full-body coverage, six selected wavelengths, and customizable touch-screen controls for everyday indoor wellness routines.
420 High-output 5W LEDs
6 Selected wavelengths
36.2″ Upright panel height
3 Years Limited warranty coverage
Expanded Full-Body Coverage
Ray™ Pro T420 combines 420 high-output LEDs, six wavelength options, touch-screen controls, and supported remote control in an upright panel designed for broader full-body and large-area wellness routines.
Broad Illuminated Surface

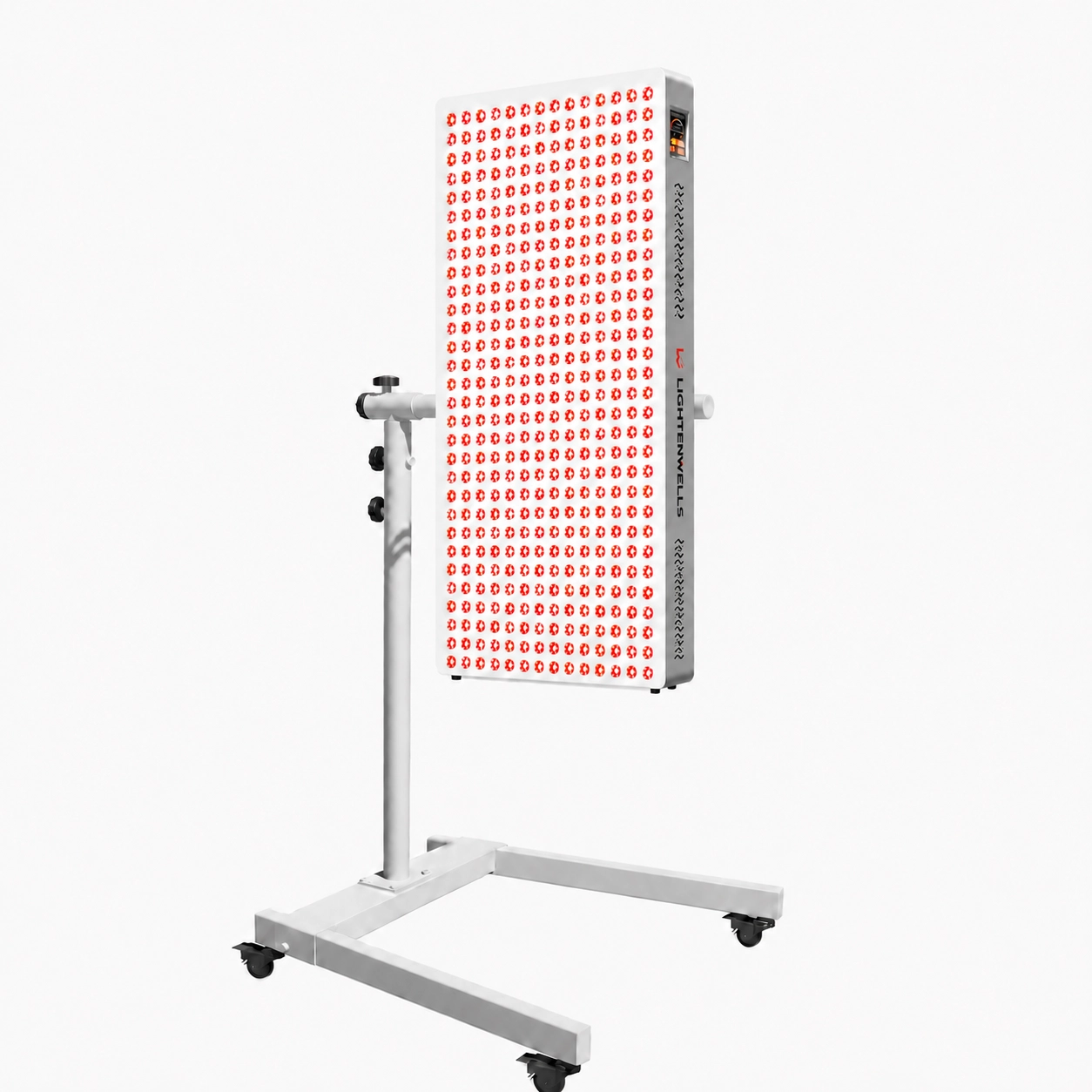

The approximately 36.2 × 16.9-inch panel provides broader coverage than smaller focused panels and can be repositioned for head-to-toe routines.
Touch-Screen Controls
Adjust session time, brightness, pulse frequency, and light modes directly through the integrated digital touch screen.

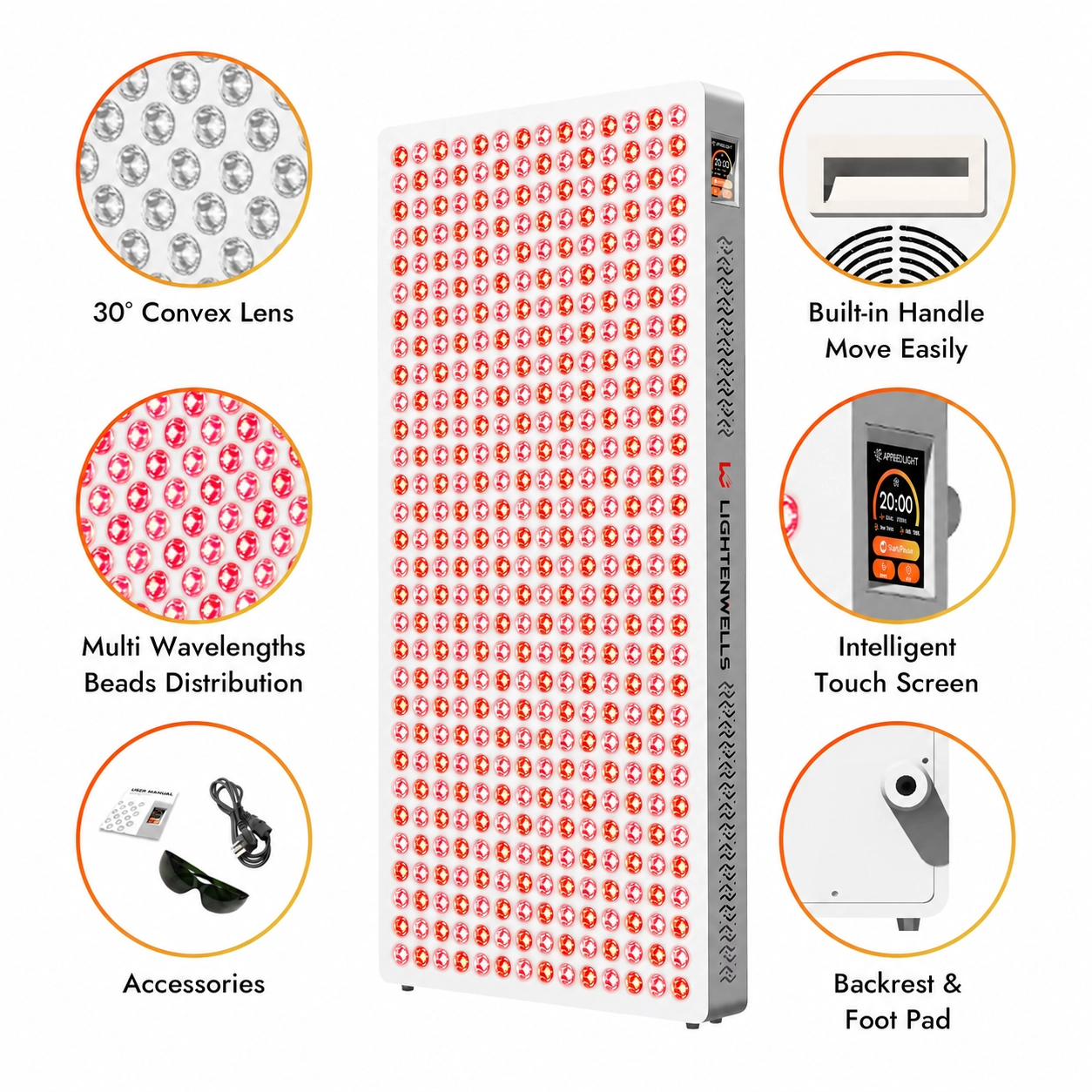

30-Degree Optical Lens
A 30-degree optical lens angle helps direct emitted light toward the selected coverage area while limiting unnecessary dispersion.
Heat-Managed Construction
The steel housing, six rear cooling fans, and extended side ventilation help support airflow during operation.
Six-Wavelength Light Technology
Choose red light, near-infrared light, or a combined mode according to the operating instructions supplied with your product.
630 nm + 660 nm Red-light wavelengths
810 nm + 850 nm + 940 nm + 1060 nm Near-infrared-light wavelengths
Output and Operating Features
- 420 × 5W LED configuration
- Manufacturer-rated irradiance ≥278 mW/cm² at 3 inches, ±10%
- Manufacturer-rated irradiance ≥190 mW/cm² at 6 inches, ±10%
- Actual power consumption of 550W, ±10%
- Brightness control from 0% to 100%
- Pulse settings from 1 to 300 Hz
- Red, near-infrared, or combined light modes

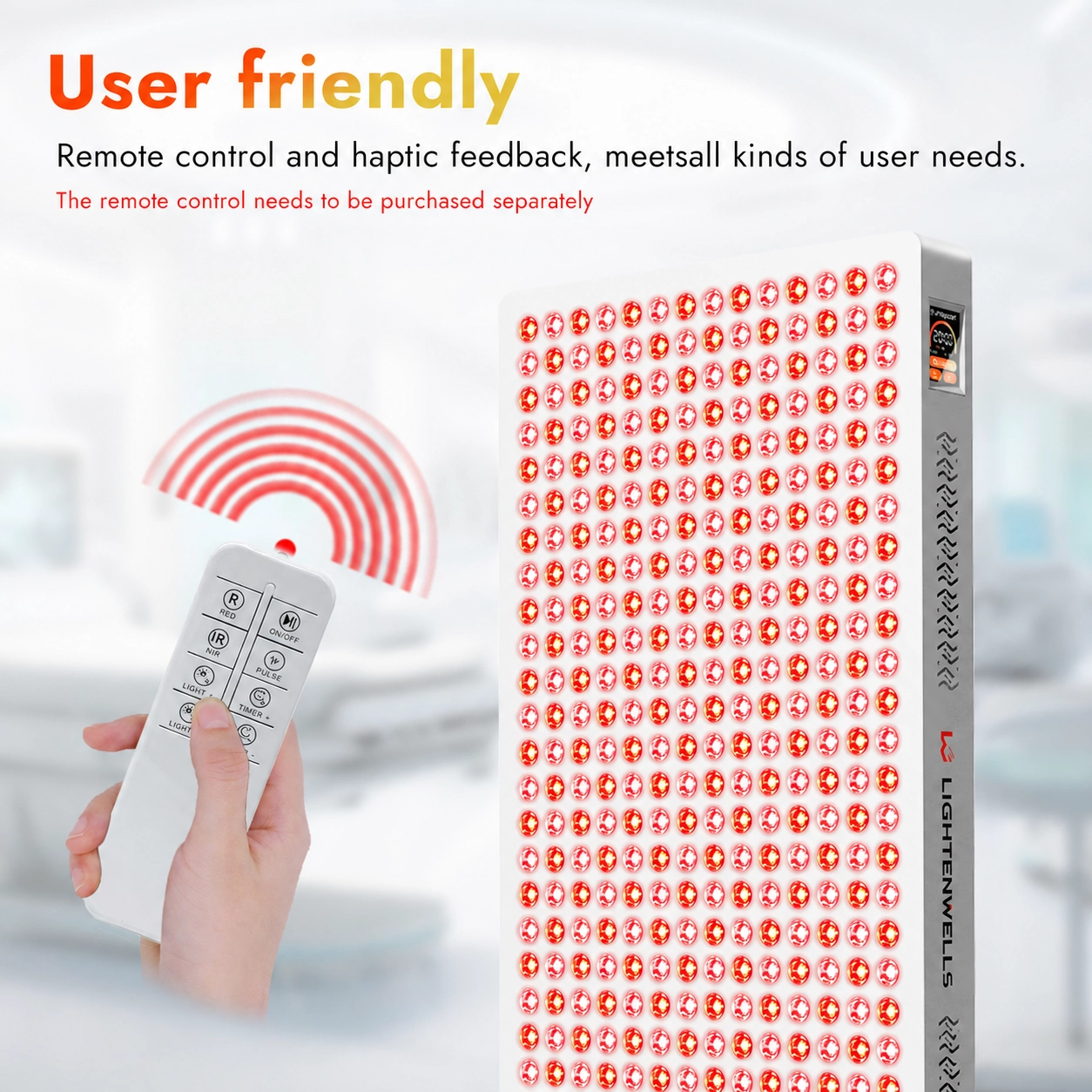

- Supported remote-control operation
Manufacturer-rated output: Irradiance values are measured under specified test conditions. Actual measurements may vary with the testing instrument, measuring position, selected mode, power supply, distance, and operating environment.
Product Specifications
| Product Name |
Ray™ Pro T420 Red Light Wellness Panel |
| Available Color |
White |
| Product Type |
Upright full-body red and near-infrared light panel |

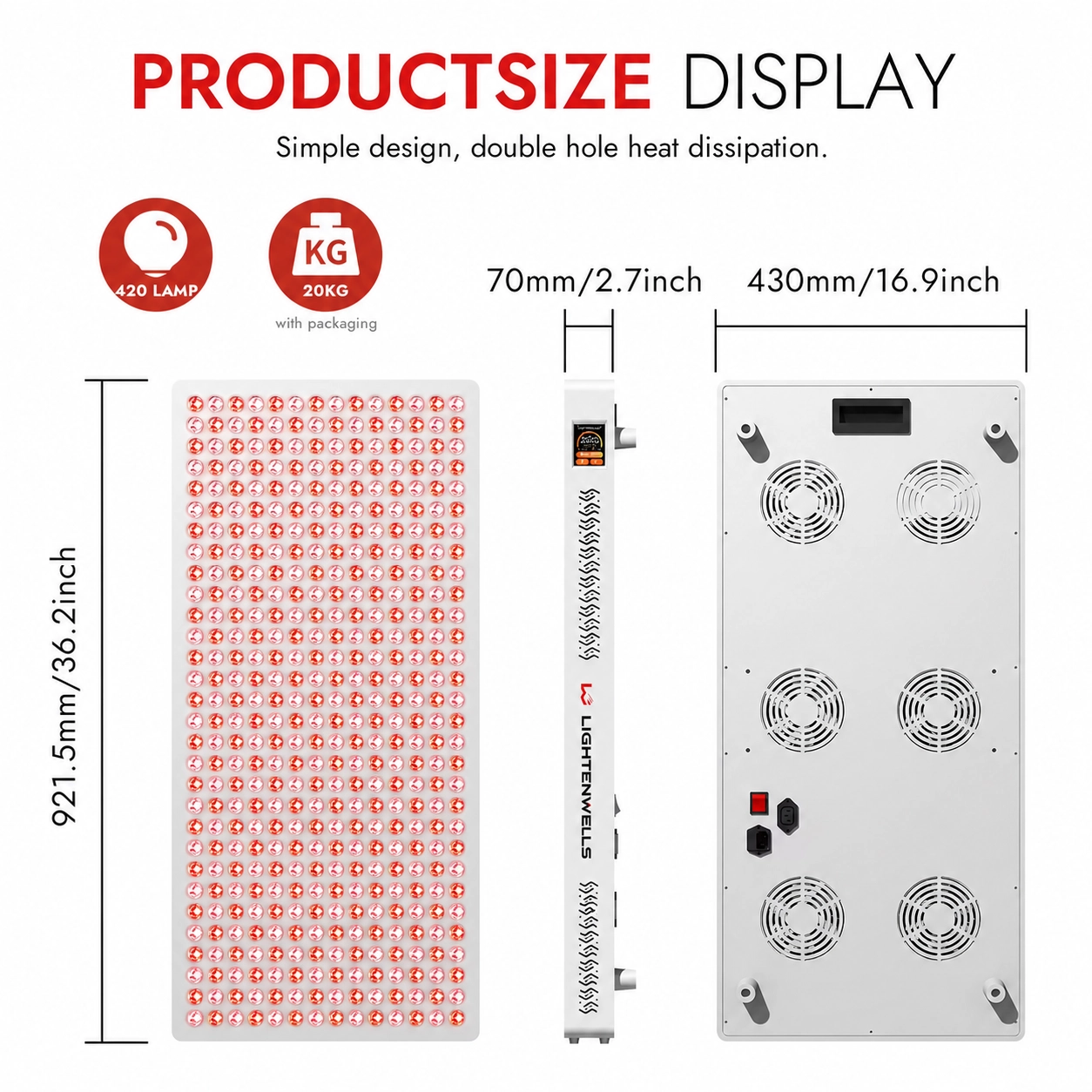

| Dimensions |
36.2 × 16.9 × 2.7 inches |
| Metric Dimensions |
92.1 × 43 × 7 cm |
| Packaged Weight |
Approximately 20 kg / 44.1 lb |
| Housing Material |
Steel |
| LED Configuration |
420 × 5W LEDs |
| Combined LED Chip Rating |
2,100W |
| Actual Power Consumption |
550W, ±10% |
| Input Voltage |
100–240V AC |
| Wavelengths |
630 nm, 660 nm, 810 nm, 850 nm, 940 nm, and 1060 nm |
| Irradiance at 3 Inches |
≥278 mW/cm², ±10% |
| Irradiance at 6 Inches |
≥190 mW/cm², ±10% |
| Lens Beam Angle |
30 degrees |
| Brightness Control |
Adjustable from 0% to 100% |
| Pulse Settings |
Adjustable from 1 to 300 Hz |
| Timer Function |
Supported |
| Touch-Screen Control |
Supported |
| Remote Control |
Supported |
| Cooling System |
Six rear cooling fans with side ventilation |
| Rated LED Lifespan |
Approximately 50,000 hours |
| Recommended Use |
Full-body and large-area wellness routines |
| Warranty |
3 years |

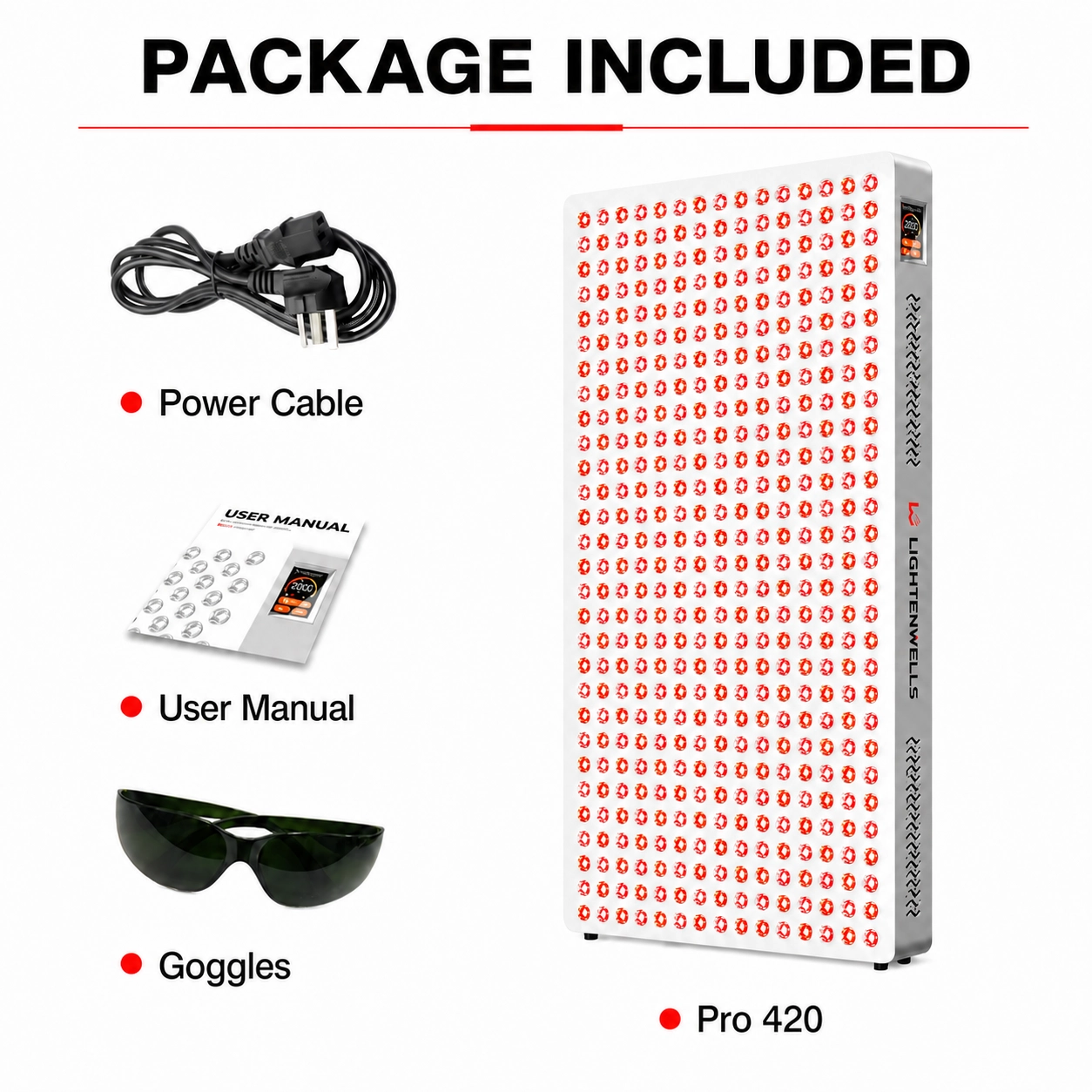

What’s Included
- Ray™ Pro T420 Red Light Wellness Panel
- Protective eyewear
- Power cable
- User manual
General wellness notice: This product is intended for general wellness use only and is not designed to diagnose, treat, cure, mitigate, or prevent any disease. Individual experiences may vary. Consult a qualified healthcare professional before use if you have a medical condition, take photosensitizing medication, are pregnant, or have concerns about light exposure. Always use protective eyewear as directed in the user manual and follow all operating, distance, placement, and safety instructions supplied with the product.
