Ray™ Panel Series

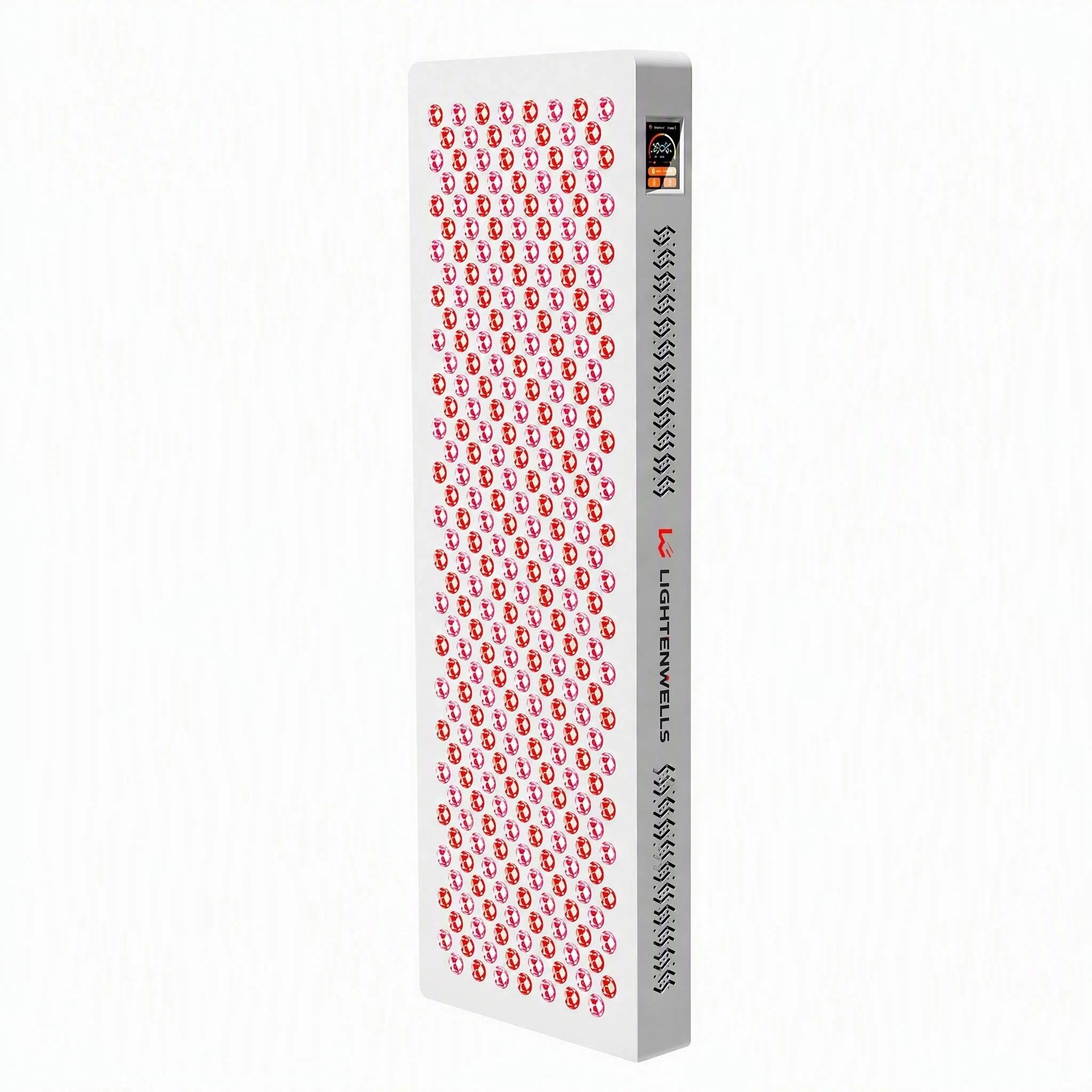

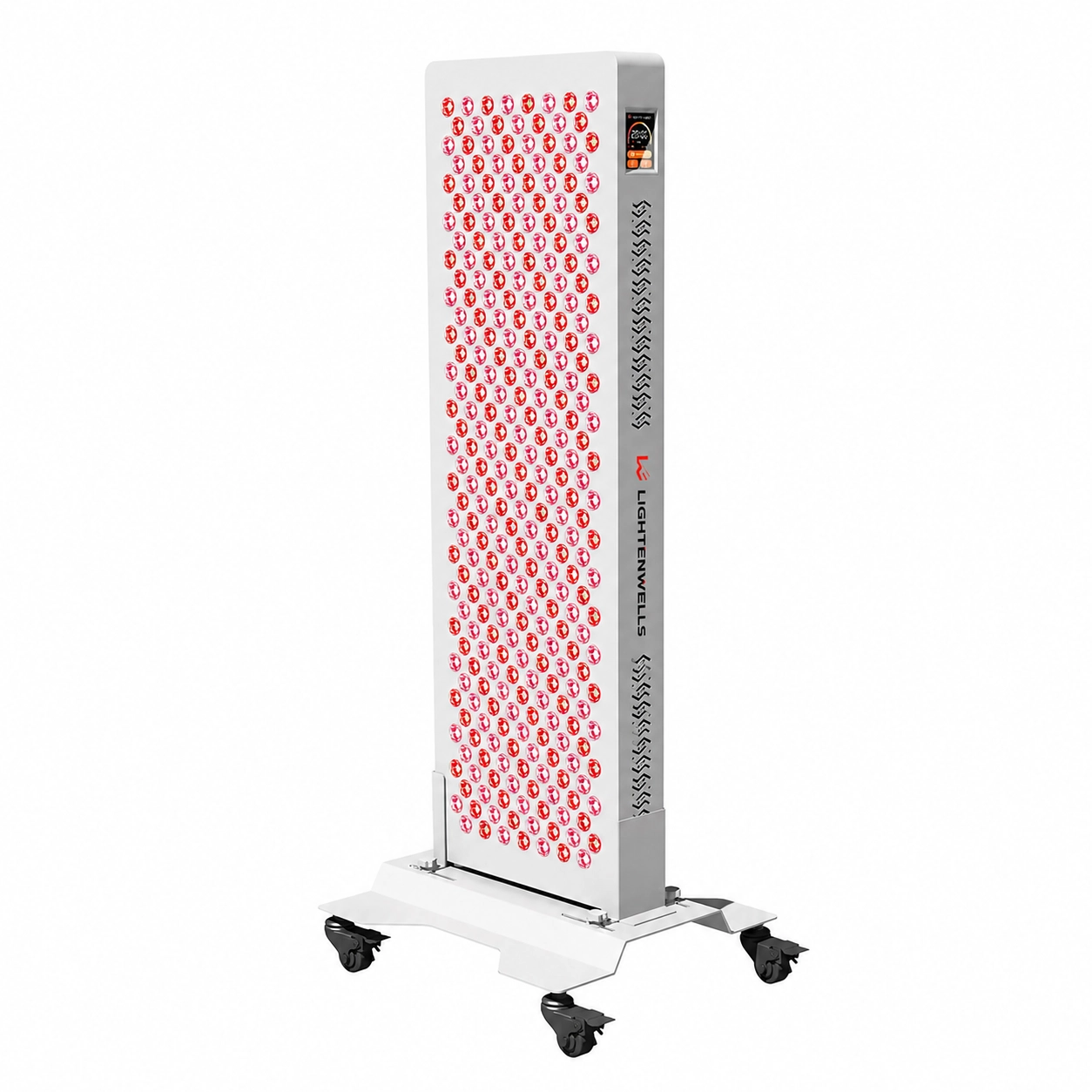

Ray™ Core T300 Red Light Wellness Panel
Expanded coverage, six selected wavelengths, and flexible controls for regular at-home wellness routines.
300 High-output 5W LEDs
6 Selected red and near-infrared wavelengths
35.9″ Upright panel height
1 Year Limited warranty coverage
Expanded At-Home Coverage
Ray™ Core T300 combines 300 LEDs, six wavelength options, supported remote control, and customizable settings in an upright format designed for broader full-body and large-area wellness routines.
Broader Illuminated Surface

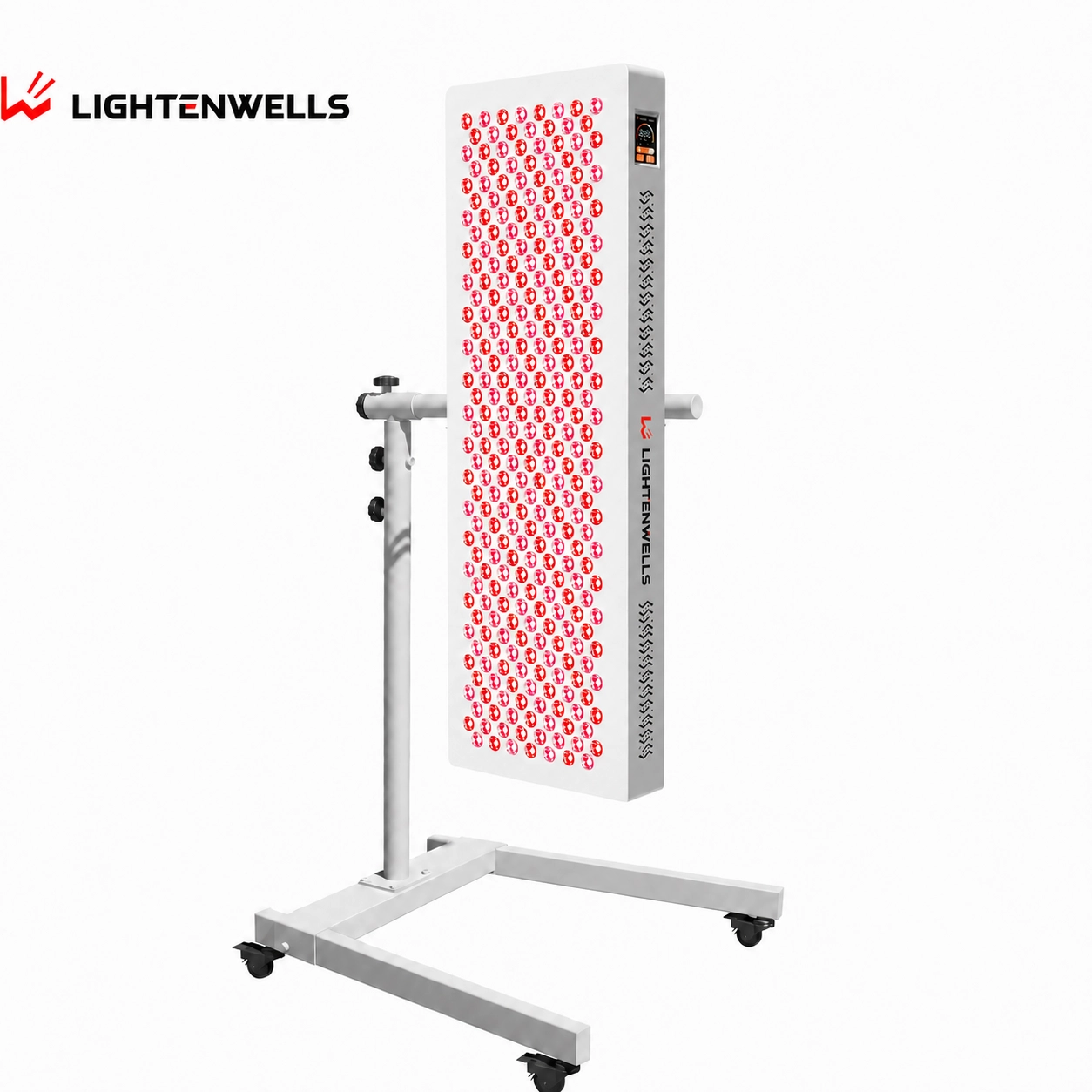

The 35.9-inch panel height provides expanded coverage compared with smaller focused panels and can be repositioned for head-to-toe routines.
Simple, Customizable Controls
Use the integrated digital control panel or supported remote control to adjust session time, brightness, pulse frequency, and light modes.
30-Degree Optical Lens
A 30-degree optical lens angle helps direct emitted light toward the selected coverage area while limiting unnecessary dispersion.
Built for Everyday Use

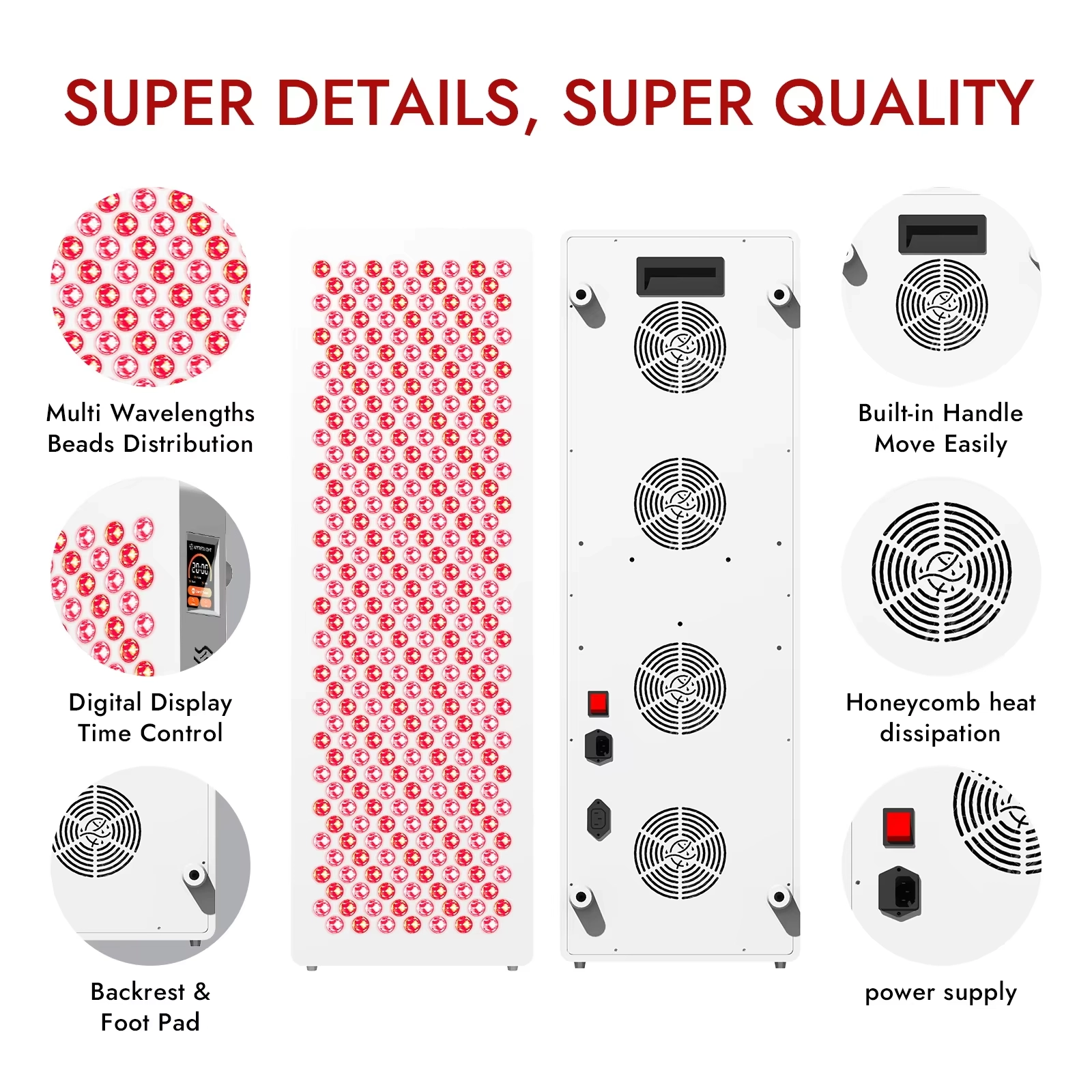

The SPCC steel housing, multi-fan cooling system, ventilated side panels, built-in handle, and stable feet support practical home use.
Six-Wavelength Light Technology
Choose red light, near-infrared light, or a combined mode according to the operating instructions supplied with your product.
630 nm + 660 nm Red-light wavelengths
810 nm + 850 nm + 940 nm + 1060 nm Near-infrared-light wavelengths
Output and Operating Features
- 300 × 5W LED configuration
- Manufacturer-rated irradiance ≥216 mW/cm² at 3 inches, ±10%
- Manufacturer-rated irradiance ≥198 mW/cm² at 6 inches, ±10%
- Brightness control from 0% to 100%
- Pulse-frequency settings from 1 to 300 Hz
- Red, near-infrared, or combined light modes
- Integrated digital timer
- Supported remote-control operation
Manufacturer-rated output: Irradiance values are measured under specified test conditions. Actual measurements may vary with the testing instrument, measuring position, selected mode, power supply, distance, and operating environment.
Product Specifications
| Product Name |
Ray™ Core T300 Red Light Wellness Panel |
| Available Color |
White |

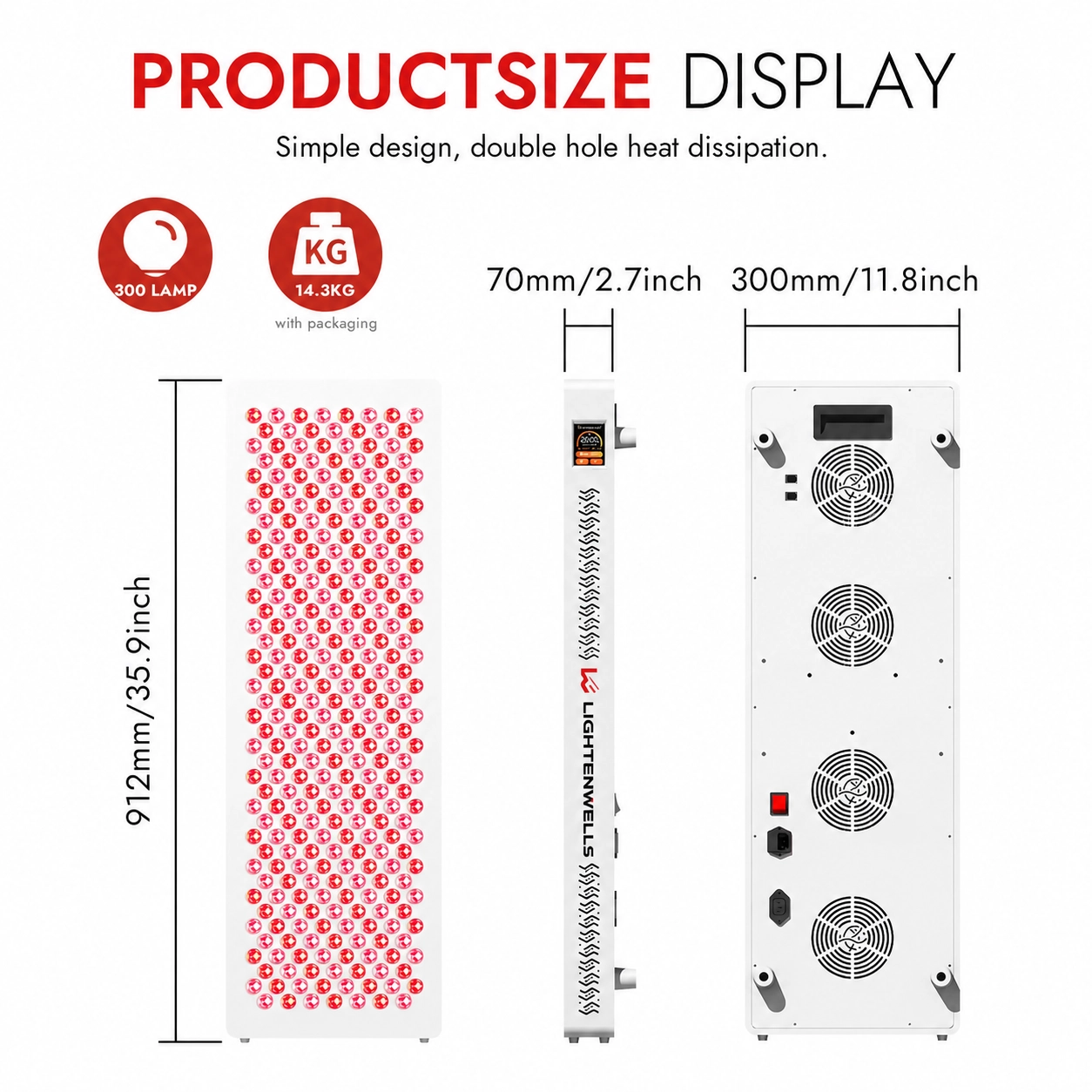

| Dimensions |
35.9 × 11.8 × 2.7 inches |
| Metric Dimensions |
91.2 × 30 × 7 cm |
| Packaged Weight |
Approximately 14.3–15 kg / 31.5–33.1 lb |
| Housing Material |
SPCC Steel |
| LED Configuration |
300 × 5W LEDs |
| Actual Power Consumption |
450W, ±10% |
| Input Voltage |
100–240V AC |
| Wavelengths |
630 nm, 660 nm, 810 nm, 850 nm, 940 nm, and 1060 nm |
| Irradiance at 3 Inches |
≥216 mW/cm², ±10% |
| Irradiance at 6 Inches |
≥198 mW/cm², ±10% |
| Lens Beam Angle |
30 degrees |
| Brightness Control |
Adjustable from 0% to 100% |
| Pulse Settings |
Adjustable from 1 to 300 Hz |
| Remote Control |
Supported |
| Digital Timer |
Supported |
| Cooling System |
Multi-fan cooling with side ventilation |
| Rated LED Lifespan |
Approximately 50,000 hours |
| Recommended Use |
Full-body and large-area wellness routines |
| Warranty |
1 year |
What’s Included
- Ray™ Core T300 Red Light Wellness Panel
- Remote control
- Protective eyewear
- Power cable
- User manual
General wellness notice: This product is intended for general wellness use only and is not designed to diagnose, treat, cure, mitigate, or prevent any disease. Individual experiences may vary. Consult a qualified healthcare professional before use if you have a medical condition, take photosensitizing medication, are pregnant, or have concerns about light exposure. Always use protective eyewear as directed in the user manual and follow all operating, distance, placement, and safety instructions supplied with the product.
